INTERPRETER SYSTEM / RENTAL WIRELESS HEADSET EARPHONE UNIT :

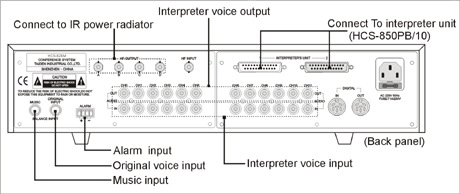

MESIN UTAMA INTERPRETER UNIT [ language distribution system ] - sistem
penerjemah bahasa
- Compliant to IEC60914 and IEC61603
part 2
- Conference hall privacy; the congress
venue itself acts as a barrier to infrared signals
escaping and being overheard, as infrared is unable to pass through
opaque objects
such as walls
- Suitable for various kinds
(small/medium/large international) of conference halls and
outdoor venues
- Automatic Level Control(ALC) ability
- Transmitting in 2-6MHz
frequency(IEC61603 BAND 4) band eliminates the
disturbance from high freq. lighting systems
- Adopt the advanced Phase Locked
Loop(PLL) techniques, generating the stable
radiation frequency with a constancy of 10ppm
- Emergenly signal interface, when the
public emergenly system is active, alarm signal can be fed to all
channels automatically
- During the adjournment, the music mode
can be used to feed music to all channels
- Easy to be installed, reducing both
project difficulties and costs
- 4 BNC output connectors for HF
signals. Each connector can be connected with up to 20 infrared
radiators
- 16 interpretation output channels for
recording
Built-in infrared emitters for audio monitoring
- Independent test facility. Unit can
self-generate diverse frequencies for system
debugging
- Input channel indicators(green, LED)
on the front-panel
- Input level indicators(red, LED)
display the level of input signals dynamically
- Optional output signals for each
channel via the rotary channel knob:
- NNORMAL: normal mode,
transmitting the interpretation signals
- MUSIC: music mode,
transmitting the external music signal
- ALARM:alarm mode, feeding
alarm signal to all channels (auto-switched when
the public alarm system is active)
- TEST: test mode,
transmitting audio signals of diverse frequencies for system
debugging
- Dimensions(L X W X H): 430 X 325 X
99mm
- Color: White
- Weight: 7.5Kg
- Rack-mounting in standard 19-inch
cabinet
RADIATOR UNTUK INTERPRETER
SYSTEM UNIT
- Powerful radiation value, with the
efficient range covering 30M(15W) and 50M(25W)
- Powerful radiation value, with the
efficient range covering 30m(15W)/ 50m(25W)/ 90m(35W)
- Multiple radiation power(15W/25W/35W)
available, choosing the unit according to the
area of the venue
- Radiation intensity is adjustable,
according to the actual venue situation
- Radiators can be connected up in
series by "hand-in-hand" mode
- Fixed mounting(with universal bracket)
or flexible mounting (with tripod) available
- Angle of half intensity: 40 Horizontal
22 Vertical
IR RECEIVER FOR
HEADSET INTERPRETER SYSTEM
- Ergonomical, delicate receiver, simply
plugged with earphone (EP-820) headphones
(EP-920A) for use
- No channel crosstalk, switch channel
via push button. 32 receive channels available
- Numeric LCD, displaying the channel
number, battery status and signal intensity
- Adopt the advanced Phase Locked
Loop(PLL) techniques to generate a stable receive
frequency with 10ppm constancy
- Burglarproof detection system
available
- Volume adjustable
- Receiver can either be hung on the
neck via the exquisite loop or put in the pocket
- Within the efficient range of the
infrared radiation, the quantity of receivers is unlimited
- No seat restriction, delegates are
movable within the radiation range
Demikian Spek teknis
bila Anda mau rental interpreter language system unit lihat beberapa
event mereka yang rental
interpretation system atau sewa
sistem penerjemah bahasa ( rental language distribution system )
di batam palembanga lampung medan padang bogor sentul. Langsung kontak ke : Viktor di
08161663288 untuk jasa SEWA RENTAL WIRELESS
HEADSET / EARPHONE
|
Unit interpreter system
yang Anda bisa sewa ke kami :
Unit utama transmisi
distribution bahasa melalui infrared (interpreter process)
---------------------------
Infrared receiver untuk
interpreter system distribusi bahasa ( language )
---------------------------
Control Panel language distribution for interpreter system rental
---------------------------
IR Radiator for language
distribution system - interpreting system unit
---------------------------
IR Headset for
interpreter language system unit
---------------------------
Contoh Booth untuk sewa
atau rental selama sesi interpreter language system conference meeting
|
